Ghaik Open Frame Monitor series is a touch monitor that supports rear mount and VESA mounting with integrated bracket design for easy installation. The series come in a bezel-less design with slim and light features allowing efficient integration into any embedded applications. Moreover, Open Frame Monitor series not only support rear mount and VESA mounting for easy installation, but also range in size from 6.5" to 32" and offers different choices with versatile touch screen integration such as IR, resistive, capacitive, and SAW.

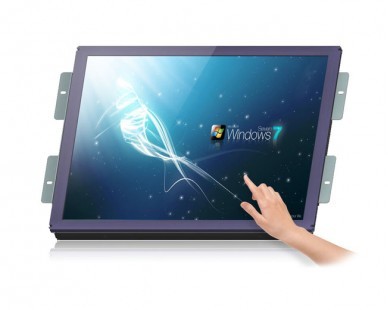

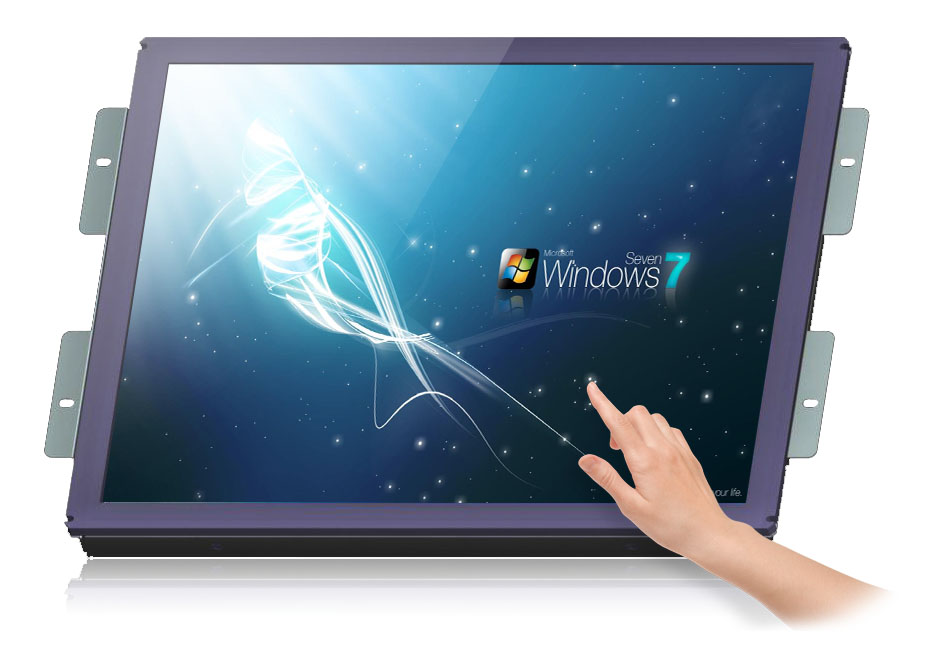

The Ghaik GHK-17OP-TB Open Frame Monitor Series offer ultra slim design supporting a 17" 1280x1024 pixels TFT LCD screen, with -20 ~ +60° C wide operating temperature, and infrared touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
Features
* SVGA(1280x1024) 350cd/m
* VGA & DVI Signal Input
* Infrared Touch Screen
* OSD Control on the Back Cover
* DC 12V Power Input
* Rugged Industry Design
* Support Embedded Mounted
* Support VESA Wall Mounted
Applications

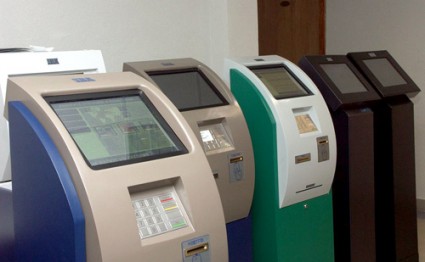

* Interactive Kiosk
* Human Machine Interface
* AFC
* ATM
* CCTV Monitor System
* Point-of-Sale System
Specification
| LCD | |
|---|---|
| Panel Type | 17 TFT-LCD LED Backlight |
| Resolution | 1280x1024 |
| Display Area（mm) | H: 376.32 x V: 301.06 |
| Brightness | 350nits |
| Contrast Ratio | 1000:1 |
| Colors | 16.7M |
| View Angle | 160/170 |
| Backlight Lifetime | 50000Hours |
| ODS Control | Auto, Menu, +, -, Exit, Power |
| Touch Screen | |
|---|---|
| Type | Infrared Touch Panel |
| Resolution(pixel) | 4096x4096 |
| Touch Transmittance | 90% |
| Interface | |
|---|---|
| Signal Input | VGA+DVI |
| Touch Connectors | USB |
| Power | |
|---|---|
| Power Input | 12VDC,4A |
| Power Consumption | <=48W |
| Mechanical | |
|---|---|
| Material | High Strength Cold Rolling Stell Chassis |
| Mounting | Rear VESA mounting and side mounting holes |
| Dimensions | 411(W) x 51(D) x 306(H)mm |
| Environment | |
|---|---|
| Operating Temp | -20-60 Degree |
| Storage Temp | -20 to 60 Degree |
| Relative Humidity | 10～90%@40 Degree |
| Vibration | 1G peak, 5~500Hz |
| Shock | 15G peak Acceleration (11msec.duration) |
| Rating | CE FCC RoHS CCC ISO9001 |
| Ordering Information | |
|---|---|
| GHK-17OP-TB0001 | 17 inch IR Touch, 350nits brightness |
| GHK-17OP-TB0002 | 17 inch IR Touch, 250nits brightness |
