CCTV Monitor

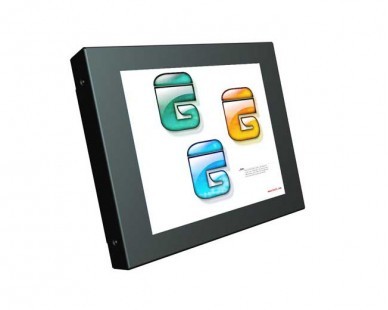

6.5” CCTV LCD Monitor
- Product Model: GHK-06IP-NC
- LCD Panel: AU TFT LCD Panel
- Touch Technology: Optional ResistIve Touch Screen
- Application: CCTV
- Online Inquiry Datasheet Download
Pictures
Descriptions
Product features
6.5 Inch Industry Lcd Monitor
Installation compatible with VESA
640 x 480 Resolution, 700 cd/m2
VGA + AV + S-vido + HDMI + YPBPR(BNC) + CVBS(BNC) Signal Input, 12V 4A Power Input
IR Radio Controller
Meet FCC, CE, CCC, RoHS Certification
Operating Temp：-20~80℃
Specification
| LCD |
| Panel Type |
AUO LCD Panel (Optional） |
| Resolution |
640*480 |
| Display Area（mm) |
132.48(H)*99.36(V) |
| Brightness |
700nits |
| Contrast Ratio |
600:1 |
| Colors |
16.2M/262k colors |
| View Angle |
80/80/70/70 |
| Backlight Lifetime |
50000 |
| ODS Control |
Auto Menu Select(+,-)Exit On/Off |
| Touch Screen |
| Type |
None |
| Resolution(pixel) |
None |
| Touch Transmittance |
None |
| Interface |
| Signal Input |
VGA (15Pin-D sub) + AV + S-vido + HDMI + YPBPR(BNC) + CVBS(BNC) (Optional) |
| Touch Connectors |
None |
| Power |
| Power Input |
DC12V/4A (50~61HZ)-DC Jack (2.0mm) |
| Power Consumption |
≤36W |
| Mechanical |
| Material |
Steel chassis |
| Mounting |
Support VESA Wall Mount and Embedded Mount |
| Dimensions |
181.0(H)*135.0(V)*44.1(D) |
| Environment |
| Operating Temp |
-20~80℃ |
| Storage Temp |
-30~85℃ |
| Relative Humidity |
10~90% @40C° Non-condensing without touch screen |
| Vibration |
1G peak,5~500Hz(Random) |
| Shock |
15G peak acceleration (11msec.duration) |
| Rating |
Meet EMI/EMC CE FCC Rohs |
| Ordering Information |
| GHK-06IP-NC |
6.5 inches monitor |
