CCTV Monitor

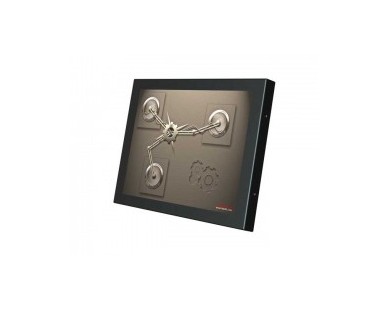

12.1” CCTV LCD Monitor
- Product Model: GHK-12IP-NC
- LCD Panel: AU TFT LCD Panel
- Touch Technology: Optional ResistIve Touch Screen
- Application: CCTV
- Online Inquiry Datasheet Download
Pictures
Descriptions
Product features
12.1 Inch Industry Lcd Monitor
Installation compatible with VESA
800 x 600 / 1024 x 768 Resolution, 400 cd/m2
VGA + AV + S-vido + HDMI + YPBPR(BNC) + CVBS(BNC) Signal Input, 12V 4A Power Input
IR Radio Controller
Meet FCC, CE, CCC, RoHS Certification
Operating Temp:-20~80℃
Specification
LCD |
Panel Type |
AUO LCD Panel (Optional) |
Resolution |
800*600 |
Display Area(mm) |
246.0(H)*184.5(V) |
Brightness |
400its |
Contrast Ratio |
600:1 |
Colors |
16.2M/262k colors |
View Angle |
70/70/50/60 |
Backlight Lifetime |
50000 |
ODS Control |
Auto Menu Select(+,-)Exit On/Off |
Touch Screen |
Type |
None |
Resolution(pixel) |
None |
Touch Transmittance |
None |
Interface |
Signal Input |
VGA (15Pin-D sub) + AV + S-vido + HDMI + YPBPR(BNC) + CVBS(BNC) (Optional) |
Touch Connectors |
None |
Power |
Power Input |
DC12V/4A (50~61HZ)-DC Jack (2.0mm) |
Power Consumption |
≤36W |
Mechanical |
Material |
Steel chassis |
Mounting |
Support VESA Wall Mount and Embedded Mount |
Dimensions |
292.5(H)*227.5(V)*46(D) |
Environment |
Operating Temp |
-20~80℃ |
Storage Temp |
-30~85℃ |
Relative Humidity |
10~90% @40C° Non-condensing without touch screen |
Vibration |
1G peak,5~500Hz(Random) |
Shock |
15G peak acceleration (11msec.duration) |
Rating |
Meet EMI/EMC CE FCC Rohs |
Ordering Information |
GHK-12IP-NC |
12.1 inches monitor |
