Industrial LCD Monitor

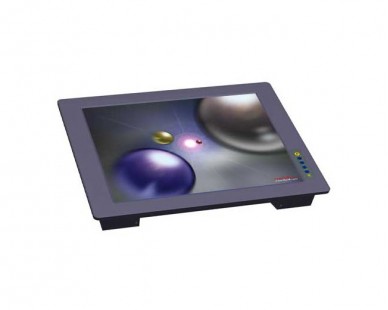

19" Industrial LCD Touch Monitor
- Product Model: GHK-19IP-TA001
- LCD Panel: AU Industrial Grade
- Touch Technology: Infrared Touch Screen
- Application: Industrial Automation Control
- Online Inquiry Datasheet Download
Pictures
Descriptions
Product features
GHK-17IP-TA001
19 Inch Industry Lcd Monitor
High-strength and elegant Al-alloy panel, stylish design, IP65 front panel
Installation compatible with VESA, wallmount and wall-embedded
1280 x 1024 Resolution, 250/350/550cd/m2
VGA Signal Input, 12V 4A Power Input
Touch Screen (Optional)
Meet FCC, CE, CCC, RoHS Certification
Operating Temp： -20~80℃
Specification
| LCD |
| Panel Type |
AUO LCD Panel (Optional） |
| Resolution |
1280*1024 |
| Display Area（mm) |
376.32(H)*301.06(V) |
| Brightness |
450nits |
| Contrast Ratio |
1000:1 |
| Colors |
16.7M |
| View Angle |
85/85/85/85 |
| Backlight Lifetime |
50000 |
| ODS Control |
Auto Menu Select(+,-)Exit On/Off |
| Touch Screen |
| Type |
Infrared Touch Screen (Optional) |
| Resolution(pixel) |
4096*4096 |
| Touch Transmittance |
>90% |
| Interface |
| Signal Input |
VGA+DVI(15 Pin D-sub/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional) |
| Touch Connectors |
USB / RS232(Optional) |
| Power |
| Power Input |
DC12V/4A (50~61HZ)-DC Jack (2.0mm) |
| Power Consumption |
≤36W |
| Mechanical |
| Material |
Steel chassis |
| Mounting |
Support VESA Wall Mount and Embedded Mount |
| Dimensions |
473.0(H)*383.0(V)*59.1(D) |
| Environment |
| Operating Temp |
-20~80℃ |
| Storage Temp |
-30~85℃ |
| Relative Humidity |
10~90% @40C° Non-condensing without touch screen |
| Vibration |
1G peak,5~500Hz(Random) |
| Shock |
15G peak acceleration (11msec.duration) |
| Rating |
Meet EMI/EMC CE FCC Rohs |
| Ordering Information |
| GHK-19IP-NA001 |
19 Inch Industry Lcd Monitor |
| GHK-19IP-TA001 |
19 Inch Industry Touch Monitor |
