Customized Series

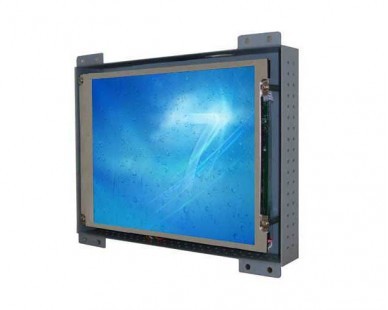

8.4" Open Frame Monitor
- Product Model: GHK-08OP-NA000
- LCD Panel: AU TFT LCD Panel
- Touch Technology: Resistive, SAW, IR, Capacitive Optional
- Application: Kiosk, Industrial
- Online Inquiry Datasheet Download
Pictures
Descriptions
Product features
GHK-08OP-NA000
8.4 Inch Open Frame Lcd Monitor
800 x 600 Resolution
220/450 cd/m2(Optional)
VGA / DVI Signal Input
12V 4A DC Input
Touch (Optional)
Meet FCC, CE, CCC, RoHS Certification
Operating Temp：-20~80℃
Specification
| LCD |
| Panel Type |
AUO LCD Panel (Optional） |
| Resolution |
800*600 |
| Display Area（mm) |
170.4(H)*127.8(V) |
| Brightness |
220nits |
| Contrast Ratio |
600:1 |
| Colors |
16.2M/262k colors |
| View Angle |
75/75/75/75 |
| Backlight Lifetime |
20000 |
| ODS Control |
Auto Menu Select(+,-)Exit On/Off |
| Touch Screen |
| Type |
No(Optional) |
| Resolution(pixel) |
No |
| Touch Transmittance |
No |
| Interface |
| Signal Input |
VGA+DVI(15 Pin D-sub/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional) |
| Touch Connectors |
USB / RS232(Optional) |
| Power |
| Power Input |
DC12V/4A (50~61HZ)-DC Jack (2.0mm) |
| Power Consumption |
≤36W |
| Mechanical |
| Material |
Steel chassis |
| Mounting |
Support VESA Wall Mount and Embedded Mount |
| Dimensions |
219.8(H)*180.0(V)*33.5(D) |
| Environment |
| Operating Temp |
-20~80℃ |
| Storage Temp |
-30~85℃ |
| Relative Humidity |
10~90% @40C° Non-condensing without touch screen |
| Vibration |
1G peak,5~500Hz(Random) |
| Shock |
15G peak acceleration (11msec.duration) |
| Rating |
Meet EMI/EMC CE FCC Rohs |
| Ordering Information |
| GHK-08IP-NA000 |
8.4 Inch Open Frame Lcd Monitor |
| GHK-08IP-TA000 |
8.4 Inch Open Frame Touch Monitor |
