Customized Series

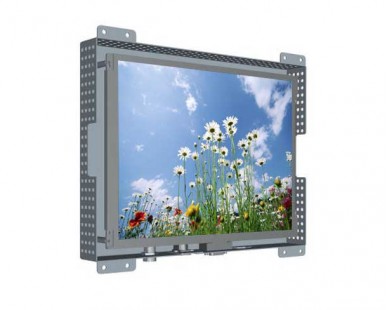

10.4" Open Frame Monitor
- Product Model: GHK-10OP-NA000
- LCD Panel: AU TFT LCD Panel
- Touch Technology: Resistive, SAW, IR, Capacitive Optional
- Application: Kiosk, Industrial
- Online Inquiry Datasheet Download
Pictures
Descriptions
Product features
GHK-08OP-NA000
10.4 Inch Open Frame Lcd Monitor
800 x 600 Resolution
230/450 cd/m2(Optional)
VGA / DVI Signal Input
12V 4A DC Input
Touch (Optional)
Meet FCC, CE, CCC, RoHS Certification
Operating Temp:-20~80℃
Specification
LCD |
Panel Type |
AUO LCD Panel (Optional) |
Resolution |
800*600 |
Display Area(mm) |
211.2(H)*158.4(V) |
Brightness |
230nits |
Contrast Ratio |
500:1 |
Colors |
16.2M/262k colors |
View Angle |
70/70/55/65 |
Backlight Lifetime |
30000 |
ODS Control |
Auto Menu Select(+,-)Exit On/Off |
Touch Screen |
Type |
No(Optional) |
Resolution(pixel) |
No |
Touch Transmittance |
No |
Interface |
Signal Input |
VGA+DVI(15 Pin D-sub/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional) |
Touch Connectors |
USB / RS232(Optional) |
Power |
Power Input |
DC12V/4A (50~61HZ)-DC Jack (2.0mm) |
Power Consumption |
≤36W |
Mechanical |
Material |
Steel chassis |
Mounting |
Support VESA Wall Mount and Embedded Mount |
Dimensions |
219.8(H)*180.0(V)*33.5(D) |
Environment |
Operating Temp |
-20~70℃ |
Storage Temp |
-30~80℃ |
Relative Humidity |
10~90% @40C° Non-condensing without touch screen |
Vibration |
1G peak,5~500Hz(Random) |
Shock |
15G peak acceleration (11msec.duration) |
Rating |
Meet EMI/EMC CE FCC Rohs |
Ordering Information |
GHK-10OP-NA000 |
10.4 Inch Open Frame Lcd Monitor |
GHK-10OP-TA000 |
10.4 Inch Open Frame Touch Monitor |
