12.1" Open Frame Monitor

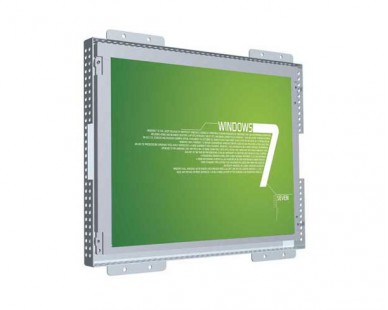

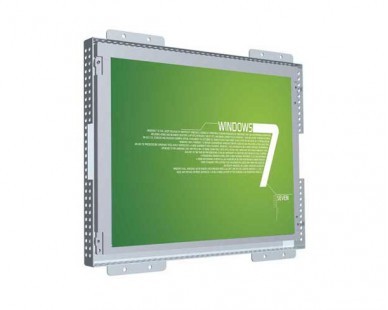

12.1" Open Frame Monitor

Product Model: GHK-12OP-NA000
LCD Panel: AU TFT LCD Panel
Touch Technology: Resistive, SAW, IR, Capacitive Optional
Application: Kiosk, Industrial
Online Inquiry Datasheet Download
Pictures
Descriptions

Product features

GHK-08OP-NA000
12.1  Inch Open Frame Lcd Monitor
800 x 600 Resolution
400/450 cd/m2(Optional)
VGA / DVI Signal Input
12V 4A DC Input
Touch (Optional)
Meet FCC, CE, CCC, RoHS Certification
Operating Temp:-20~80℃

Specification

LCD
Panel Type  AUO LCD Panel (Optional)
Resolution  800*600
Display Area(mm)  246.0(H)*184.5(V)
Brightness  400nits
Contrast Ratio  600:1
Colors  16.2M/262k colors
View Angle  70/70/50/60
Backlight Lifetime  50000
ODS Control  Auto Menu Select(+,-)Exit On/Off
Touch Screen
Type  No(Optional)
Resolution(pixel)  No
Touch Transmittance  No
Interface
Signal Input  VGA+DVI(15 Pin D-sub/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional)
Touch Connectors  USB / RS232(Optional)
Power
Power Input  DC12V/4A (50~61HZ)-DC Jack (2.0mm)
Power Consumption  ≤36W
Mechanical
Material  Steel chassis
Mounting  Support VESA Wall Mount and Embedded Mount
Dimensions  290.0(H)*245.0(V)*47.1(D)
Environment
Operating Temp  -20~80℃
Storage Temp  -20~80℃
Relative Humidity  10~90% @40C° Non-condensing without touch screen
Vibration  1G peak,5~500Hz(Random)
Shock  15G peak acceleration (11msec.duration)
Rating  Meet EMI/EMC CE FCC Rohs
Ordering Information
 GHK-12OP-NA000  12.1 Inch Open Frame Lcd Monitor
 GHK-12OP-TA000  12.1 Inch Open Frame Touch Monitor
