Customized Series

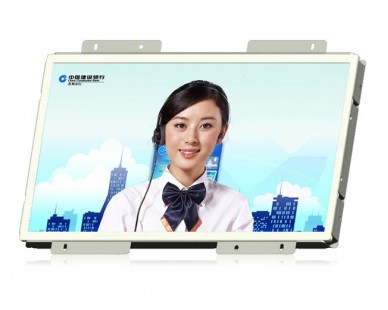

18.5" Open Frame Monitor
- Product Model: GHK-18OP-NO000
- LCD Panel: AU TFT LCD Panel
- Touch Technology: Resistive, SAW, IR, Capacitive Optional
- Application: Kiosk, Industrial
- Online Inquiry Datasheet Download
Pictures
Descriptions
Product features
GHK-18OP-NO000
18.5 Inch Open Frame Lcd Monitor
1366 x 768 Resolution
300 cd/m2(Optional)
VGA / DVI Signal Input
12V 4A DC Input
Touch (Optional)
Meet FCC, CE, CCC, RoHS Certification
Operating Temp:-20~80℃
Specification
LCD |
Panel Type |
AUO LCD Panel (Optional) |
Resolution |
1366*768 |
Display Area(mm) |
H: 409.8 x V: 230.4 |
Brightness |
250nits |
Contrast Ratio |
1000:1 |
Colors |
16.7M |
View Angle |
85/85/80/80 |
Backlight Lifetime |
50000 |
ODS Control |
Auto Menu Select(+,-)Exit On/Off |
Touch Screen |
Type |
No(Optional) |
Resolution(pixel) |
No |
Touch Transmittance |
No |
Interface |
Signal Input |
VGA+DVI(15 Pin D-sub/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional) |
Touch Connectors |
USB / RS232(Optional) |
Power |
Power Input |
DC12V/4A (50~61HZ)-DC Jack (2.0mm) |
Power Consumption |
≤36W |
Mechanical |
Material |
Steel chassis |
Mounting |
Support VESA Wall Mount and Embedded Mount |
Dimensions |
433.2(H)*293.4(V)*49.8(D) |
Environment |
Operating Temp |
0~50℃ |
Storage Temp |
-20~60℃ |
Relative Humidity |
10~90% @40C° Non-condensing without touch screen |
Vibration |
1G peak,5~500Hz(Random) |
Shock |
15G peak acceleration (11msec.duration) |
Rating |
Meet EMI/EMC CE FCC Rohs |
Ordering Information |
GHK-18OP-NO000 |
18.5 Inch Open Frame Lcd Monitor |
GHK-18OP-TO000 |
18.5 Inch Open Frame Touch Monitor |
