Resistive Touch Series

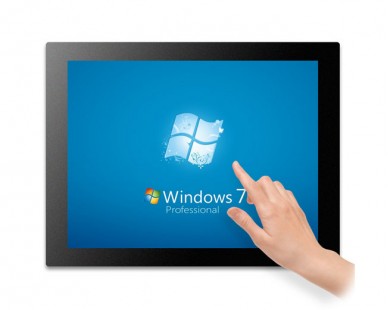

15" Open Frame Touch Monitor
- Product Model: GHK-15IP-NO
- LCD Panel: AUO LCD Panel
- Touch Technology: 5 Wires Resistive TouchScreen

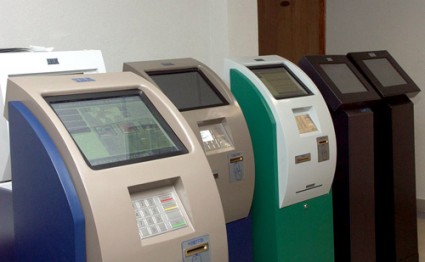

- Application: ATM, Industrial, CCTV
- Online Inquiry Datasheet Download
Pictures
Descriptions
Product features
15 Inch Industry Lcd Monitor
Installation compatible with VESA, wallmount and wall-embedded
1024 x 768 Resolution, 250 cd/m2
VGA Signal Input, 12V 4A Power Input
Touch Screen (Optional)
Meet FCC, CE, CCC, RoHS Certification
Operating Temp：-20~80℃
Specification
| LCD |
| Panel Type |
AUO LCD Panel (Optional） |
| Resolution |
1024*768 |
| Display Area（mm) |
304.128(H)*228.096(V) |
| Brightness |
400nits |
| Contrast Ratio |
700:1 |
| Colors |
16.2M/262k colors |
| View Angle |
80/80/80/60 |
| Backlight Lifetime |
50000 |
| ODS Control |
Auto Menu Select(+,-)Exit On/Off |
| Touch Screen |
| Type |
5 Wires Resistance (Optional) |
| Resolution(pixel) |
4096*4096 |
| Touch Transmittance |
>90% |
| Interface |
| Signal Input |
VGA+DVI(15 Pin D-sub/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional) |
| Touch Connectors |
USB / RS232(Optional) |
| Power |
| Power Input |
DC12V/4A (50~61HZ)-DC Jack (2.0mm) |
| Power Consumption |
≤36W |
| Mechanical |
| Material |
Steel chassis |
| Mounting |
Support VESA Wall Mount and Embedded Mount |
| Dimensions |
333(H)*1264(V)*42(D) |
| Environment |
| Operating Temp |
-20~80℃ |
| Storage Temp |
-30~85℃ |
| Relative Humidity |
10~90% @40C° Non-condensing without touch screen |
| Vibration |
1G peak,5~500Hz(Random) |
| Shock |
15G peak acceleration (11msec.duration) |
| Rating |
Meet EMI/EMC CE FCC Rohs |
| Ordering Information |
| GHK-15IP-NO000 |
15 Inch Industry Lcd Monitor |
| GHK-15IP-TO000 |
15 Inch Industry Touch Monitor |
