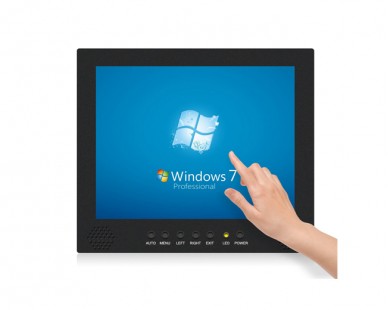

10.4" Open Frame Touch Monitor

10.4" Open Frame Touch Monitor

Product Model: GHK-10OP-TO005
LCD Panel:
Touch Technology:
Application:
Online Inquiry Datasheet Download
Pictures
Descriptions

Product features

10.4 Inch Industry Lcd Monitor
Installation compatible with VESA, wallmount and wall-embedded
800 x 600 Resolution, 450 cd/m2
VGA Signal Input, 12V 4A Power Input
Touch Screen (Optional)
Meet FCC, CE, CCC, RoHS Certification
Operating Temp:-20~80℃

Specification

LCD
Panel Type  AUO LCD Panel (Optional)
Resolution  800*600
Display Area(mm)  213.8(H)*161.0(V)
Brightness  450nits
Contrast Ratio  600:1
Colors  16.2M/262k colors
View Angle  80/80/80/60
Backlight Lifetime  50000
ODS Control  Auto Menu Select(+,-)Exit On/Off
Touch Screen
Type  5 Wires Resistance (Optional)
Resolution(pixel)  4096*4096
Touch Transmittance  >90%
Interface
Signal Input  VGA+DVI(15 Pin D-sub/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional)
Touch Connectors  USB / RS232(Optional)
Power
Power Input  DC12V/4A (50~61HZ)-DC Jack (2.0mm)
Power Consumption  ≤36W
Mechanical
Material  Steel chassis
Mounting  Support VESA Wall Mount and Embedded Mount
Dimensions  246.5(H)*190.0(V)*39.4(D)
Environment
Operating Temp  -20~80℃
Storage Temp  -30~85℃
Relative Humidity  10~90% @40C° Non-condensing without touch screen
Vibration  1G peak,5~500Hz(Random)
Shock  15G peak acceleration (11msec.duration)
Rating  Meet EMI/EMC CE FCC Rohs
Ordering Information
 GHK-10OP-NO005  10.4 Inch Industry Lcd Monitor
 GHK-10OP-TO005  10.4 Inch Industry Touch Monitor
