Multi-functional industrial LCD A/D board

Multi-functional industrial LCD A/D board

Product Model: GHK-DV2525A
LCD Panel: Support AUO, CMO, Samsung, Innolux, BOE, AMT, LG-Philips, CPT,Sharp, Fujistu,Hannstar,Sanyo
Touch Technology: Support Resistive, Capacitive Touch Panel
Application: ATM, Kiosk Display
Online Inquiry Datasheet Download
Pictures
Descriptions

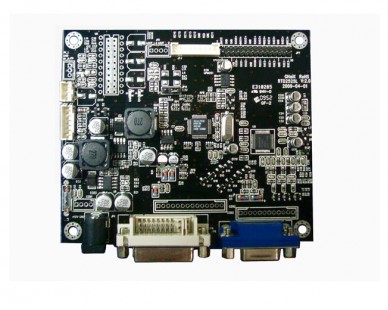

GHK-DV2525A/B is a multi-functional industrial LCD A/D board self-researched by Ghaik Technology, this board is designed as 2525/2545 Solution. It supports single & dual channel LVDS, driving 6.5-32 inch LVDS interface LCD panel.

Features

* VGA/DVI signal input, support separated line / field sync & composite sync.
* Resolution Support:
   VGA (640*480)
   SVGA (800*600)
   XGA (1024*768)
   SXGA (1280*1024)
   WXGA (1366*768)
   UXGA (1600*1200)
   WUXGA (1920*1200)

   It can make the input signal within the range of VGA and UXGA into wider range of zoom processing , to achieve the best display.

* 12V(+/-1V)DC power input, short-circuit protection.
* LCD driving signal supports single pixel 8-bit / 6-bit and dual pixel 8-bit / 6-bit LVDS interface TFT LCD, max colors 16.7M.
* PnP, in accordance with VESA, DDC1/2B standard.
* Support PC audio input, 2*8W power output.
* 6-key / 5-key OSD (used more in VGA/DVI) control, content includes Brightness, Contrast Ratio, Phase, Clock, Pictureposition, OSD Position, OSD Language, Color Temperature, Volume, Factory Reset, etc.
* Support most models of digital TFT LCD below 32-inch (including 32”),which are made by AUO, CMO, Samsung, Innolux, BOE, AMT, LG-Philips, CPT,Sharp, Fujistu,Hannstar,Sanyo and more manufacturers.
* Wide temperature, long-term use under -20℃~80℃ harsh environment.
