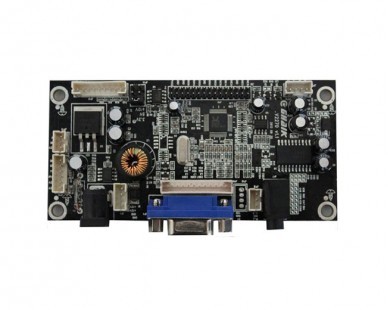

GHK-V2270 is a multi-purpose LCD controller,it is designed to support Dual/single LVDS, which 6.5-32 inch LCD Panel. The main feature of GHK-V2270 can support VGA signal input.
Features
* VGA signal input, support separated line / field sync & composite sync.
* Resolution Support:
VGA :640*480 / 720*400
SVGA :800*600
XGA :1024*768
SXGA :1280*1024
WXGA :1366*768 / 1680*1050
It can make the input signal within the range of VGA and UXGA into wider range of zoom processing , to achieve the best display.
* 12V（+/-1V）DC power input, short-circuit protection.
* LCD driving signal supports single pixel 8-bit / 6-bit and dual pixel 8-bit / 6-bit LVDS interface TFT LCD, max colors 16.7M.
* PnP, in accordance with VESA, DDC1/2B standard.
* Support PC audio input, 2*2W(8Ω) power output.
* 6-key / 5-key OSD (used more in VGA/DVI) control, content includes Brightness, Contrast Ratio, Phase, Clock, Pictureposition, OSD Position, OSD Language, Color Temperature, Volume, Factory Reset, etc.
* Support most models of digital TFT LCD below 32-inch (including 32”),which are made by AUO, CMO, Samsung, Innolux, BOE, AMT, LG-Philips, CPT，Sharp, Fujistu，Hannstar，Sanyo and more manufacturers.
