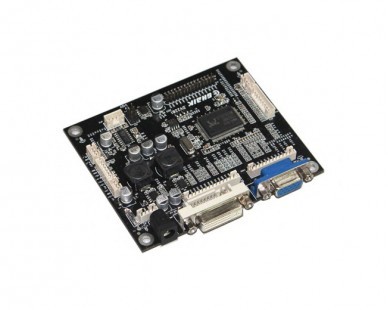

GHK-DV2281 is a multi-functional industrial LCD A/D board self-researched by Ghaik Technology, this board is designed as Realtek 2281 solution. It supports single & dual channel LVDS, driving 6.5-32 inch LVDS interface LCD panel.
Features
* VGA/DVI signal input, support separated line / field sync & composite sync.
* Resolution Support:
VGA (640*480)
SVGA (800*600)
XGA (1024*768)
SXGA (1280*1024)
WXGA (1366*768)
UXGA (1600*1200)
WUXGA (1920*1080)
It can make the input signal within the range of VGA and WUXGA into wider range of zoom processing , to achieve the best display.
* 12V（+/-1V）DC power input, short-circuit protection.
* LCD driving signal supports single pixel 8-bit / 6-bit and dual pixel 8-bit / 6-bit LVDS interface TFT LCD, max colors 16.7M.
* PnP, in accordance with VESA, DDC1/2B standard.
* Support PC audio input, 2*8W power output.
* 6-key / 5-key OSD (used more in VGA/DVI) control, content includes Brightness, Contrast Ratio, Phase, Clock, Pictureposition, OSD Position, OSD Language, Color Temperature, Volume, Factory Reset, etc.
* Support most models of digital TFT LCD below 32-inch (including 32”),which are made by AUO, CMO, Samsung, Innolux, BOE, AMT, LG-Philips, CPT，Sharp, Fujistu，Hannstar，Sanyo and more manufacturers. * Wide temperature, long-term use under -30℃~80℃ harsh environment.
