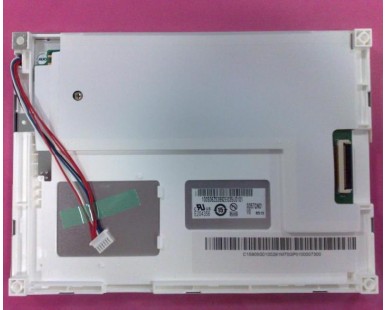

| LCD Monitor | 5.7 |
| Model | G057QN01 V2 |
| Resolution (pixel) | 320*240 |
| Active Area（mm) | 115.2(H)x86.4(V) |
| Pixel Pitch (mm) | 0.36*0.36 |
| Mode | |
| Number of Colors | |
| Support Color | 262K colors |
| Color Saturation (%) | 50% |
| View Angle (H/V) | 80/80/70/70 |
| Brightness (nit) | 800cd/m2 |
| Contrast Ratio | 800:1 |
| Response Time(ms) | 25 |
| Power Consumption (W) | 3.37W |
| Interface | CMOS 6-bit Parallel RGB |
| Supply Voltage (V) | 3.3V |
| Backlight | LED |
| V x H x T (mm) | 144.0(H) x 104.6(V) x 12.3(D) |
| Weight(g) | 160g(typ.),175(max.) |
| Production | Now |
| Remark | -30℃～+80℃ |
