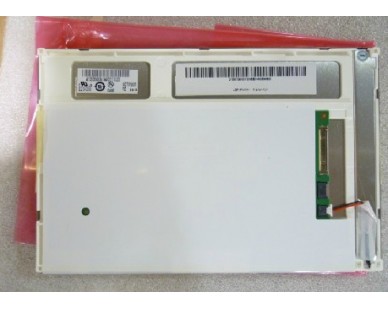

7“ Industrial TFT LCD Panel

7“ Industrial TFT LCD Panel

Product Model: G070VW01 V1
LCD Brand: AUO
Resolution: 800*480
Brightness: 350cd/m2
Backlight Type: LED
Application: ATM, AFC, Kiosk, Gaming, Automation
Online Inquiry Datasheet Download
Specification
LCD Monitor  7
Model  G070VW01 V1
Resolution (pixel)  800*480
Active Area(mm)  152.40(H) x 91.44(V)
Pixel Pitch (mm)  0.1905 x 0.1905
Mode  TN,Normally White
Number of Colors
Support Color  262K(6-bit) / 16.2M(8-bit)
Color Saturation (%)  50%
View Angle (H/V)  65/65/50/60
Brightness (nit)  350cd/m2
Contrast Ratio  700:1
Response Time(ms)  30
Power Consumption (W)  TBD
Interface  1 channel LVDS
Supply Voltage (V)  3.3
Backlight  LED
V x H x T (mm)  170.0(W) x 111.0(H) x 8.0(D) (typ.)
Weight(g)  175
Production  Now
Remark  -20℃~+70℃
