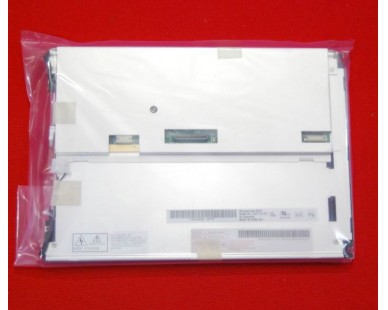

| LCD Monitor | 10.4 |
| Model | G104VN01 V1 |
| Resolution (pixel) | 640*480 |
| Active Area（mm) | 211.2 (H) x 158.4 (V) |
| Pixel Pitch (mm) | 0.33 x 0.33 |
| Mode | TN,Normally White |
| Number of Colors | |
| Support Color | 16.2M / 262K colors |
| Color Saturation (%) | 45% |
| View Angle (H/V) | 80/80/80/60 |
| Brightness (nit) | 450cd/m2 |
| Contrast Ratio | 700:1 |
| Response Time(ms) | 30 |
| Power Consumption (W) | 5.4 |
| Interface | 1 channel LVDS |
| Supply Voltage (V) | 3.3 |
| Backlight | LED |
| V x H x T (mm) | 243.0(H) x 176.6(V) x 8.0(D) |
| Weight(g) | 390 |
| Production | Now |
| Remark | -30℃～+85℃ |
