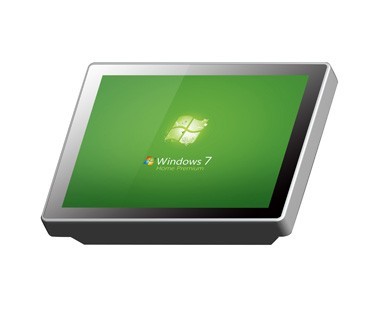

10.4“ ProCap Open Frame Touch Monitor

10.4“ ProCap Open Frame Touch Monitor

Product Model: GHK-10OP-TC
LCD Panel: AU Industrial Grade
Touch Technology: Projected Capacitive Touch

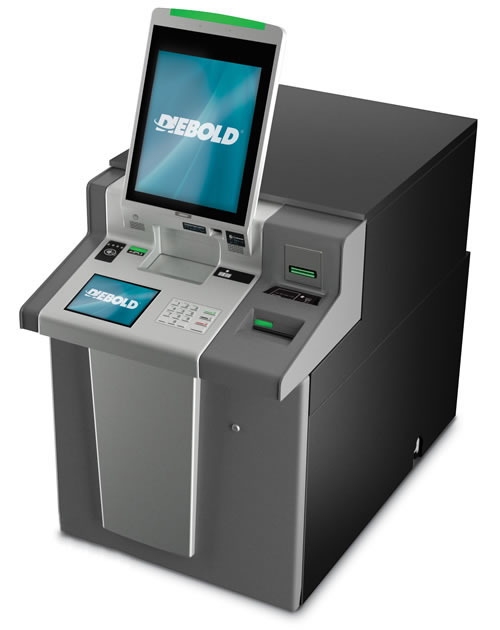

Application: Industrial, Kiosk, Gaming, ATM
Online Inquiry Datasheet Download

Ghaik Bezel Free open frame touch monitors are designed for kiosk, table, and other high-standard touch application. The product series are designed with10.4", 15", 17",18.5",19" and 21.5" form factors to provide customer a wide range of options. Flush touch screen enables easy cleaning, bacteria/dust free, and ergonomic touch features.

Projected Capacitive touch screen provides multi-touch and gesture input application, Windows 7 compatible. Compact and integrated touch solution. Touch screen is nicely fixed into the unit so no additional assembly is needed. Rugged structure for reliability for durable use, well-considered dust and splash proof bezel design for touch screen. The product is design with industrial-grade components, using A-grade panel.

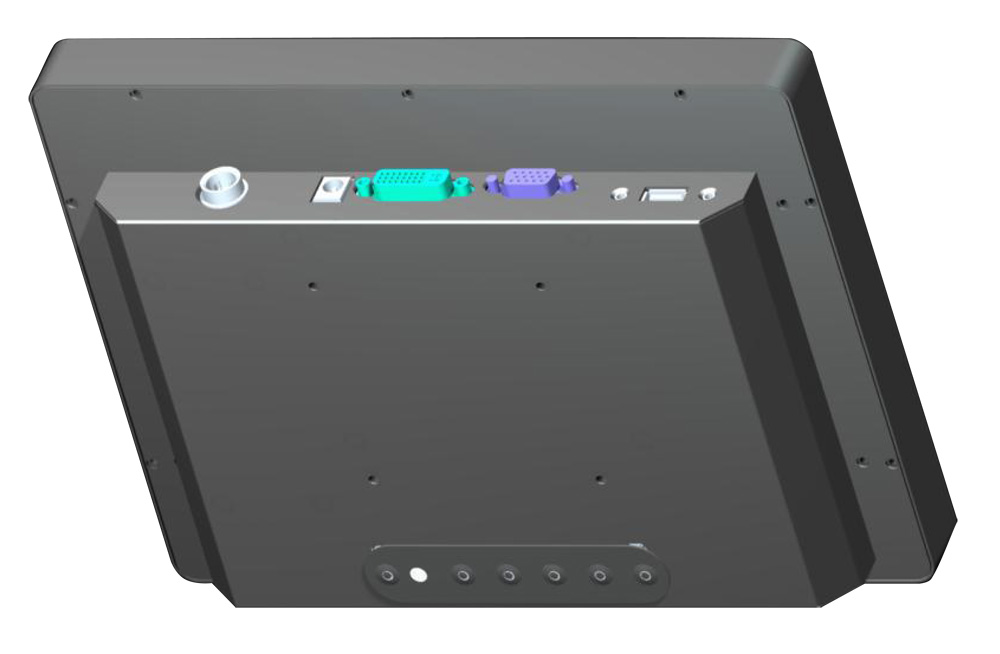

Rear VESA mounting and side mounting holes, providing various mounting options. Built-in digital on-screen-display (OSD) buttons, support multilingual (8 languages). HID compliant which easily integrate with thin client or computer.

Optional EMR? (Electro-Magnetic Resonance) Technology,5080 lines per inch (lpi) resolution 2048 levels of pressure sensitivity, Rechargeable pen-stylus. Optional Privacy Filter. Worldwide safety approvals, including: CE, FCC-B, RoHS and CCC. Other certification is applicable upon request.


* SVGA(800x600) 1000cd/m

* VGA & DVI Signal Input

* Projected Capacitive Touch Screen

* OSD Control on the Back Cover

* DC 12V Power Input

* Rugged Industry Design

* Support Embedded Mounted

* Support VESA Wall Mounted


* Interactive Kiosk

* Human Machine Interface



* CCTV Monitor System

* Point-of-Sale System


Panel Type  10.4 inch TFT-LCD LED Backlight
Resolution  800x600
Display Area(mm)  H: 211.2 x V: 158.4
Brightness  230nits
Contrast Ratio  500:1
Colors  16.2M
View Angle  160/140
Backlight Lifetime  50000Hours
ODS Control  Auto, Menu, +, -, Exit, Power
Touch Screen
Type  Multi Touch PCT Touch Panel
Resolution(pixel)  4096x4096
Touch Transmittance  92%
Signal Input  VGA+DVI
Touch Connectors  USB
Power Input  12VDC,4A
Power Consumption  <=48W
Material  High Strength Cold Rolling Stell Chassis
Mounting  Rear VESA mounting and side mounting holes
Dimensions  251.2(W) x 48(D) x 193.4(H)mm
Operating Temp  0-50 Degree
Storage Temp  -20 to 60 Degree
Relative Humidity  10~90%@40 Degree, non-condense
Vibration  1G peak, 5~500Hz(随机)
Shock  15G peak Acceleration (11msec.duration)
Rating  CE FCC RoHS CCC ISO9001
Ordering Information
 GHK-10OP-TC-0A01  10.4 inch P-Cap Touch
 GHK-10OP-TC-0A02  10.4 inch P-Cap Touch+Privacy Filter
 GHK-10OP-TC-0A03  10.4 inch P-Cap Touch+Pen Touch, Battery-with
 GHK-10OP-TC-0A04  10.4 inch P-Cap Touch+Pen Touch, Battery-with+Privacy Filter
 GHK-10OP-TC-0A05  10.4 inch P-Cap Touch+Pen Touch, Battery-free
