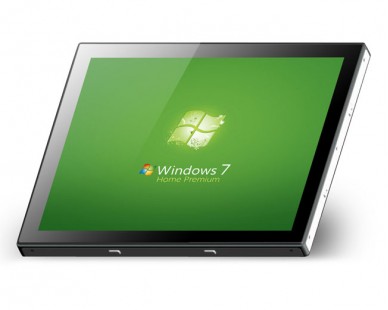

Ghaik Bezel Free open frame touch monitors are designed for kiosk, table, and other high-standard touch application. The product series are designed with10.4", 15", 17",18.5",19" and 21.5" form factors to provide customer a wide range of options. Flush touch screen enables easy cleaning, bacteria/dust free, and ergonomic touch features.
Projected Capacitive touch screen provides multi-touch and gesture input application, Windows 7 compatible. Compact and integrated touch solution. Touch screen is nicely fixed into the unit so no additional assembly is needed. Rugged structure for reliability for durable use, well-considered dust and splash proof bezel design for touch screen. The product is design with industrial-grade components, using A-grade panel.
Rear VESA mounting and side mounting holes, providing various mounting options. Built-in digital on-screen-display (OSD) buttons, support multilingual (8 languages). HID compliant which easily integrate with thin client or computer.
Optional EMR? (Electro-Magnetic Resonance) Technology,5080 lines per inch (lpi) resolution 2048 levels of pressure sensitivity, Rechargeable pen-stylus. Optional Privacy Filter. Worldwide safety approvals, including: CE, FCC-B, RoHS and CCC. Other certification is applicable upon request.
Features
* SVGA(1280x1024) 350cd/m
* VGA & DVI Signal Input
* Projected Capacitive Touch Screen
* OSD Control on the Back Cover
* DC 12V Power Input
* Rugged Industry Design
* Support Embedded Mounted
* Support VESA Wall Mounted
Applications

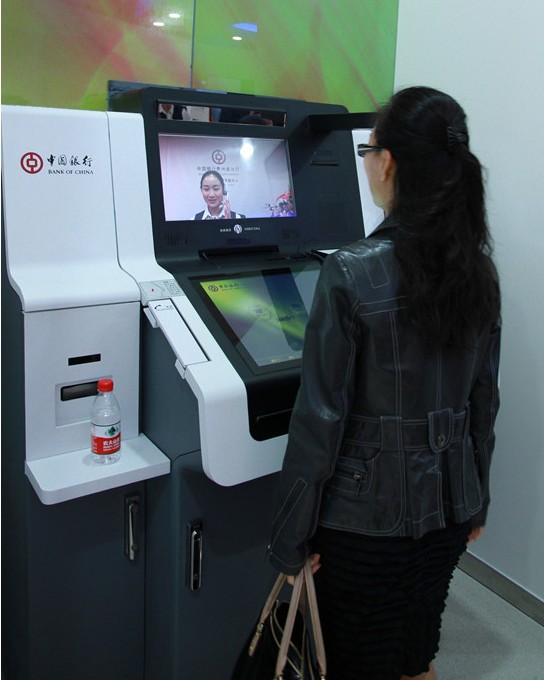

* Interactive Kiosk
* Human Machine Interface
* AFC
* ATM
* CCTV Monitor System
* Point-of-Sale System
Specification
| LCD | |
|---|---|
| Panel Type | 19 TFT-LCD LED Backlight |
| Resolution | 1280x1024 |
| Display Area（mm) | H: 376.32 x V: 301.06 |
| Brightness | 350nits |
| Contrast Ratio | 1000:1 |
| Colors | 16.7M |
| View Angle | 160/170 |
| Backlight Lifetime | 50000Hours |
| ODS Control | Auto, Menu, +, -, Exit, Power |
| Touch Screen | |
|---|---|
| Type | Multi Touch PCT Touch Panel |
| Resolution(pixel) | 4096x4096 |
| Touch Transmittance | 92% |
| Interface | |
|---|---|
| Signal Input | VGA+DVI |
| Touch Connectors | USB |
| Power | |
|---|---|
| Power Input | 12VDC,4A |
| Power Consumption | <=48W |
| Mechanical | |
|---|---|

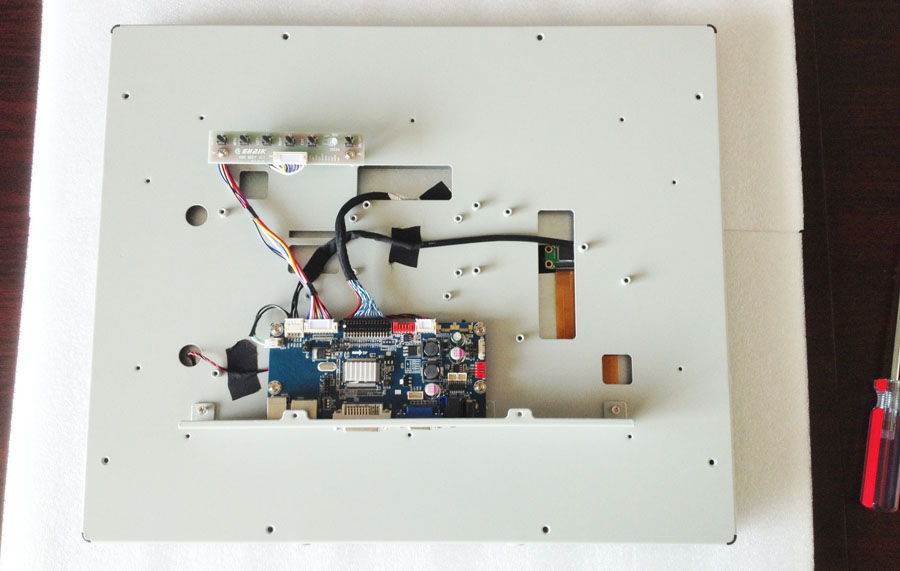

| Material | High Strength Cold Rolling Stell Chassis |

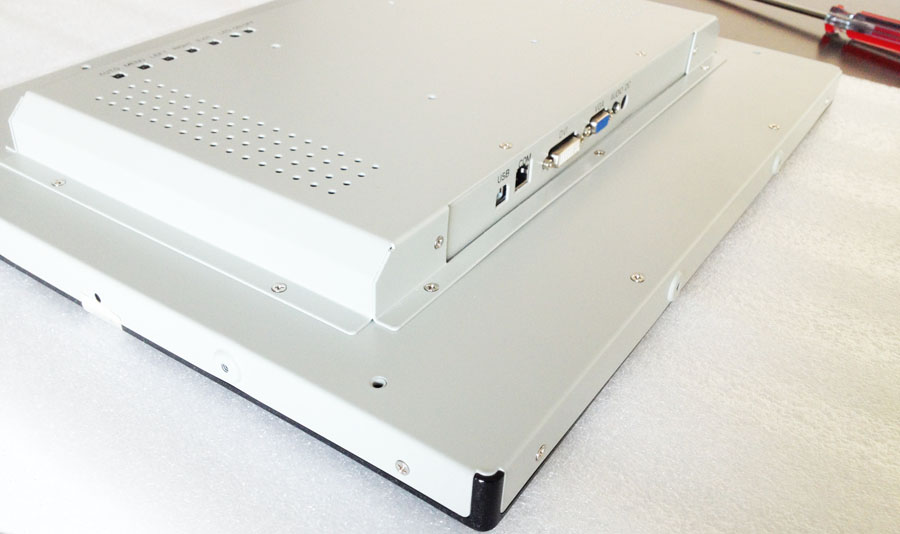

| Mounting | Rear VESA mounting and side mounting holes |
| Dimensions | 433(W) x 53.8(D) x 306.4(H)mm |
| Environment | |
|---|---|
| Operating Temp | 0-50 Degree |
| Storage Temp | -20 to 60 Degree |
| Relative Humidity | 10～90%@40 Degree |
| Vibration | 1G peak, 5~500Hz |
| Shock | 15G peak Acceleration (11msec.duration) |
| Rating | CE FCC RoHS CCC ISO9001 |
| Ordering Information | |
|---|---|
| GHK-19OP-TC-0A01 | 19 inch P-Cap Touch |
| GHK-19OP-TC-0A02 | 19 inch P-Cap Touch+Privacy Filter |
| GHK-19OP-TC-0A03 | 19 inch P-Cap Touch+Pen Touch, Battery-with |
| GHK-19OP-TC-0A04 | 19 inch P-Cap Touch+Pen Touch, Battery-with+Privacy Filter |
| GHK-19OP-TC-0A05 | 19 inch P-Cap Touch+Pen Touch, Battery-free |
