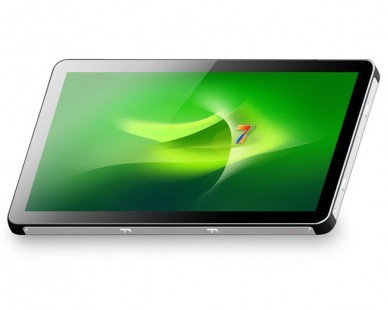

21.5“ ProCap Open Frame Touch Monitor

21.5“ ProCap Open Frame Touch Monitor

Product Model: GHK-21OP-TC
LCD Panel: AU Industrial Grade
Touch Technology: Projected Capacitive Touch

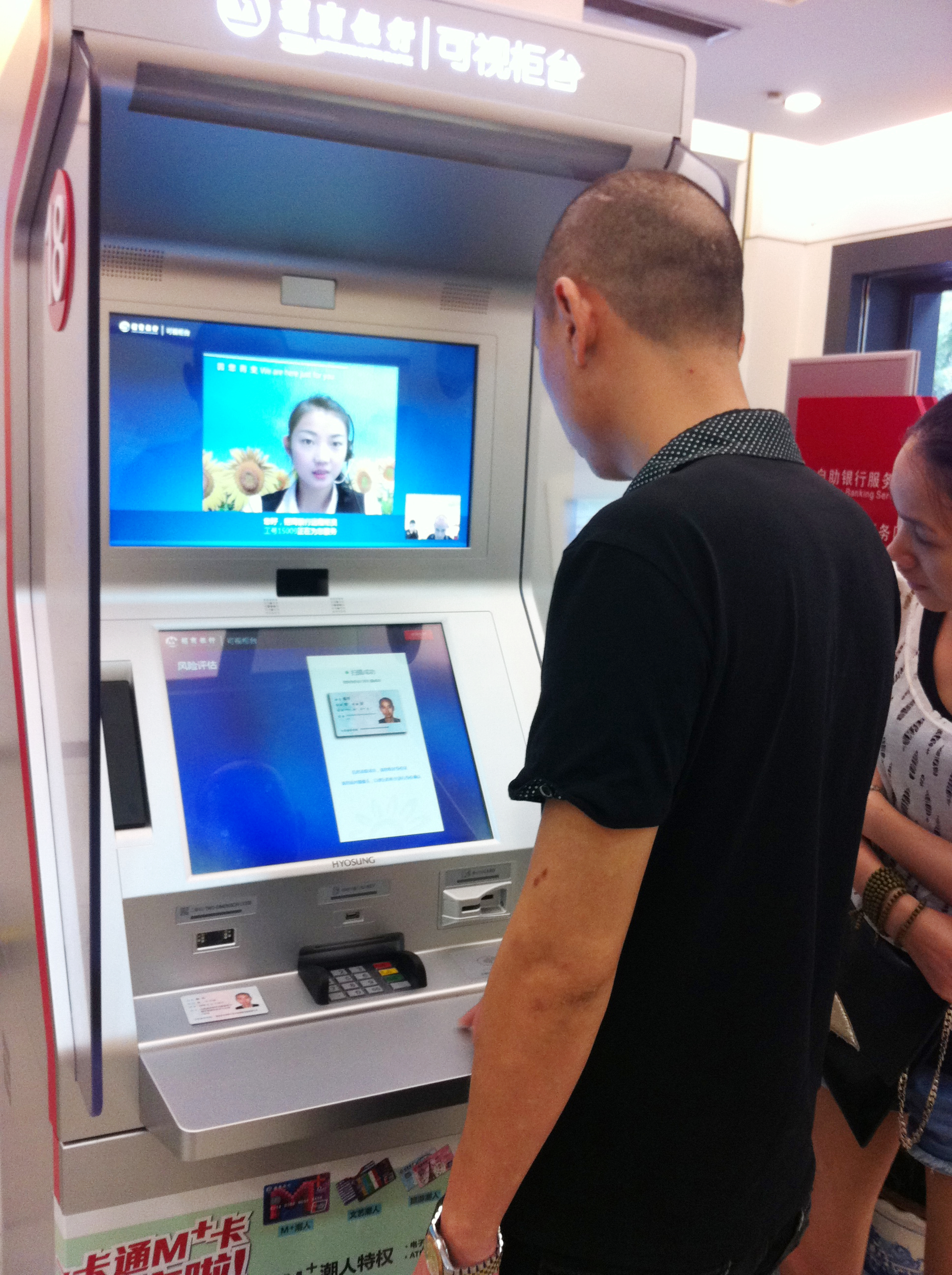

Application: Industrial, Kiosk, Gaming, ATM
Online Inquiry Datasheet Download

Ghaik Bezel Free open frame touch monitors are designed for kiosk, table, and other high-standard touch application. The product series are designed with10.4", 15", 17",18.5",19" and 21.5" form factors to provide customer a wide range of options. Flush touch screen enables easy cleaning, bacteria/dust free, and ergonomic touch features.

Projected Capacitive touch screen provides multi-touch and gesture input application, Windows 7 compatible. Compact and integrated touch solution. Touch screen is nicely fixed into the unit so no additional assembly is needed. Rugged structure for reliability for durable use, well-considered dust and splash proof bezel design for touch screen. The product is design with industrial-grade components, using A-grade panel.

Rear VESA mounting and side mounting holes, providing various mounting options. Built-in digital on-screen-display (OSD) buttons, support multilingual (8 languages). HID compliant which easily integrate with thin client or computer.

Optional EMR? (Electro-Magnetic Resonance) Technology,5080 lines per inch (lpi) resolution 2048 levels of pressure sensitivity, Rechargeable pen-stylus. Optional Privacy Filter. Worldwide safety approvals, including: CE, FCC-B, RoHS and CCC. Other certification is applicable upon request.


* FHD(1920x1080) 250cd/m

* VGA & DVI Signal Input, Option HDMI

* Projected Capacitive Touch Screen

* OSD Control on the Back Cover

* DC 12V Power Input

* Rugged Industry Design

* Support Embedded Mounted

* Support VESA Wall Mounted

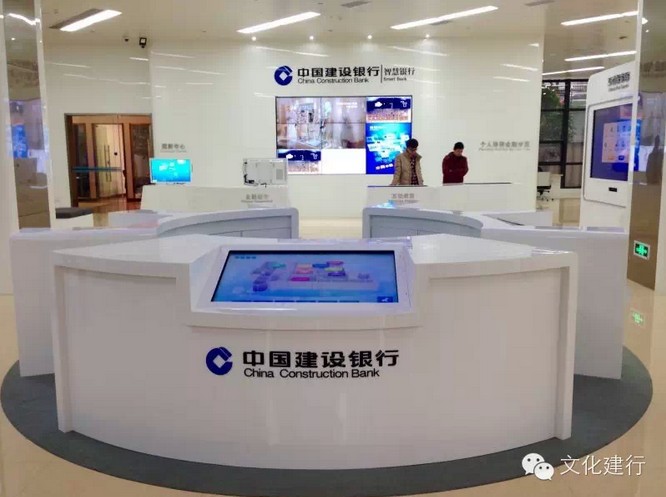

* Interactive Kiosk

* Human Machine Interface



* CCTV Monitor System

* Point-of-Sale System


Panel Type  21.5 inch Widescreen TFT-LCD LED Backlight
Resolution  1920x1080
Display Area(mm)  H: 479.84 x V: 271.31
Brightness  250nits
Contrast Ratio  1000:1
Colors  16.7M
View Angle  170/160
Backlight Lifetime  30000Hours
ODS Control  Auto, Menu, +, -, Exit, Power
Touch Screen
Type  Multi Touch PCT Touch Panel
Resolution(pixel)  4096x4096
Touch Transmittance  92%
Signal Input  VGA+DVI
Touch Connectors  USB
Power Input  12VDC,4A
Power Consumption  <=48W
Material  High Strength Cold Rolling Stell Chassis

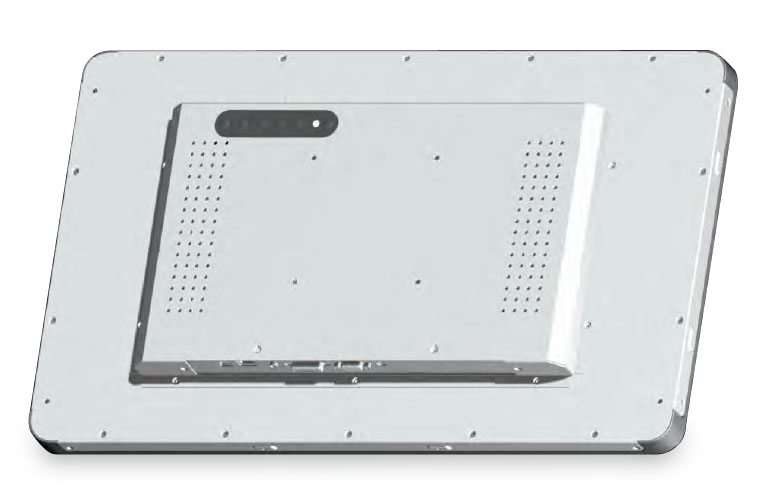

Mounting  Rear VESA mounting and side mounting holes
Dimensions  529.64(W) x 53.8(D) x 321.11(H)mm
Operating Temp  0-50 Degree
Storage Temp  -20 to 60 Degree
Relative Humidity  10~90%@40 Degree
Vibration  1G peak, 5~500Hz
Shock  15G peak Acceleration (11msec.duration)
Rating  CE FCC RoHS CCC ISO9001
Ordering Information
 GHK-21OP-TC-0A01  21.5 inch P-Cap Touch
 GHK-21OP-TC-0A02  21.5 inch P-Cap Touch+Privacy Filter
 GHK-21OP-TC-0A03  21.5 inch P-Cap Touch+Pen Touch, Battery-with
 GHK-21OP-TC-0A04  21.5 inch P-Cap Touch+Pen Touch, Battery-with+Privacy Filter
 GHK-21OP-TC-0A05  21.5 inch P-Cap Touch+Pen Touch, Battery-free
